LX Series Steam Boilers
The On-Demand Steam System Built for Florida's Most Demanding Facilities
LX Series Steam Boilers set a different standard for commercial and industrial steam generation. At Boiler Technologies Unlimited, we supply and support Miura's LX line across the entire state of Florida, from Jacksonville pharmaceutical plants to Miami hotel complexes to Gulf Coast food processing operations. Founded in August 2021 as an authorized Miura boiler authorized dealer, we've built our business around one core belief: Florida's industrial and commercial facilities deserve better than the firetube status quo.
This page covers every model in the LX lineup, how the technology compares to legacy firetube systems, and why more Florida facility managers are making the switch.
What Makes the Miura LX Boiler a Different Category of Equipment
Most facility managers upgrading from a Cleaver-Brooks, Hurst, or Fulton firetube unit aren't just looking for a newer version of what they already have. They're looking for a system that solves the problems the old unit created.
Firetube boilers carry a fundamental design constraint that doesn't improve with age or maintenance. Large water volumes require 30 to 45 minutes to reach operating pressure. Standby fuel consumption continues whether or not steam is being drawn. Partial load efficiency is poor. A single large unit represents a single point of failure, and in a pharmaceutical plant or hotel laundry operation, that failure scenario has consequences that extend well beyond a repair bill.
The Miura LX boiler is a watertube steam boiler operating on once-through technology. It holds a fraction of the water of a comparable firetube system. Full operating pressure from a cold start in under five minutes. That's not incremental improvement over a Cleaver-Brooks or Fulton. It's a different engineering approach producing a different operational result.
For Florida facilities running in high-ambient-temperature, high-humidity conditions, that responsiveness and efficiency translates directly into lower operating cost and higher production reliability.
The Complete Miura LX Series Model Lineup

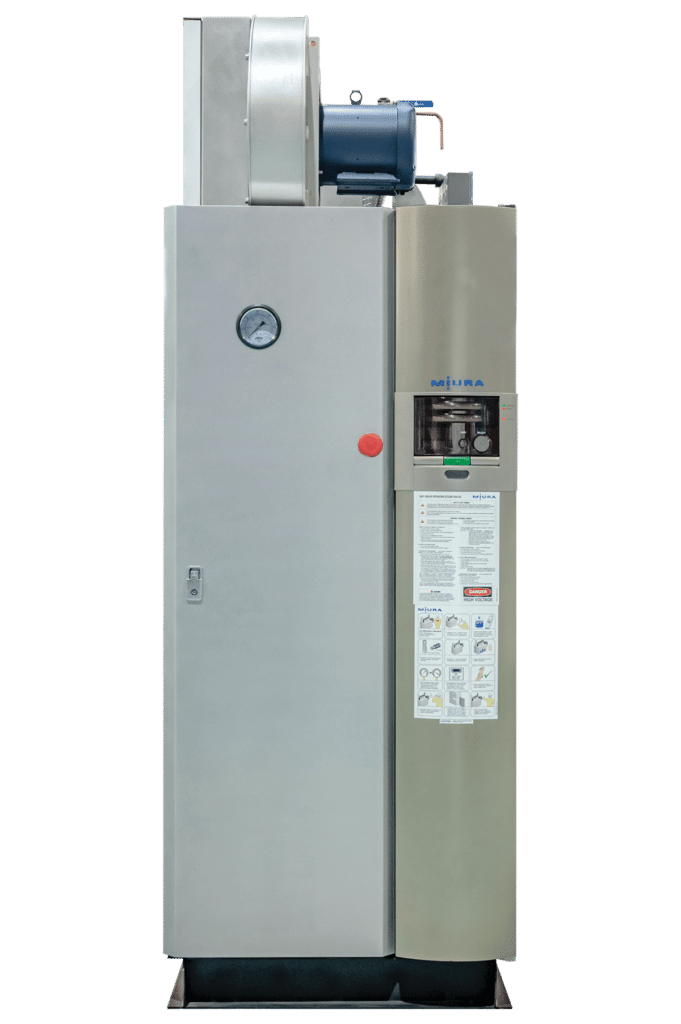

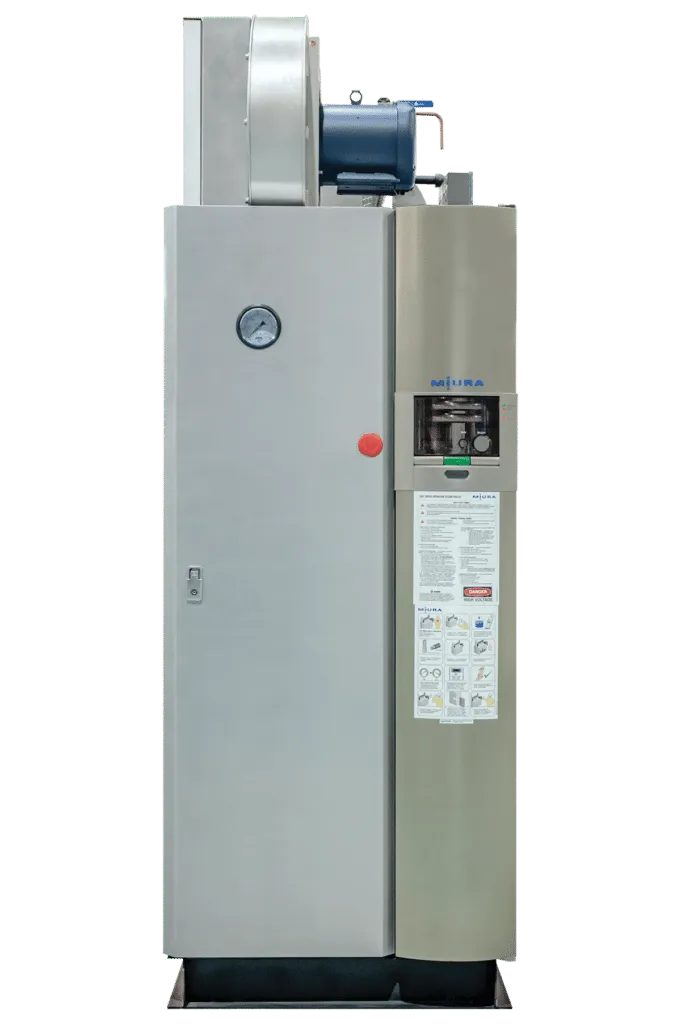

Miura LX-50 Steam Boiler
Our guarantee covers most parts and labor costs, as well as the industry’s only Pressure Vessel Guarantee (with the MMC/PVG program only) against corrosion. By selecting our maintenance & inspection program, you enlist Miura’s expert stewardship over the long-term reliability and efficient operation of your boilers.

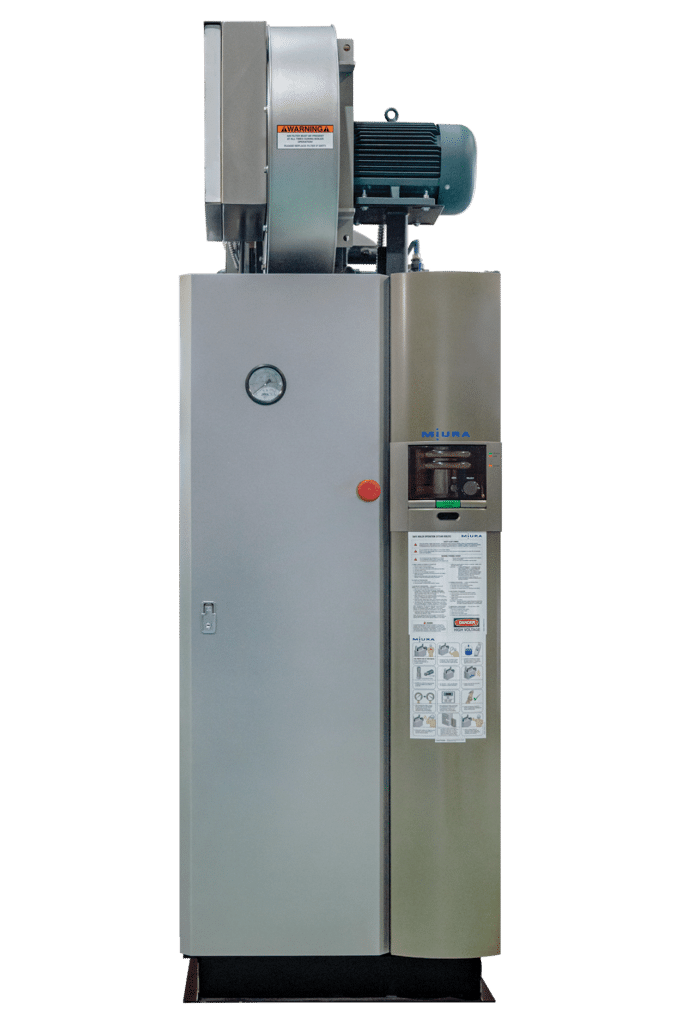

Miura LX-100 Steam Boiler
At 100 HP, the Miura LX-100 steam boiler serves mid-size commercial operations across food service, hospitality, and light industrial applications. Hotels, resorts, and country clubs across Florida operate LX-100 units as primary steam sources with room to add capacity as demand grows.

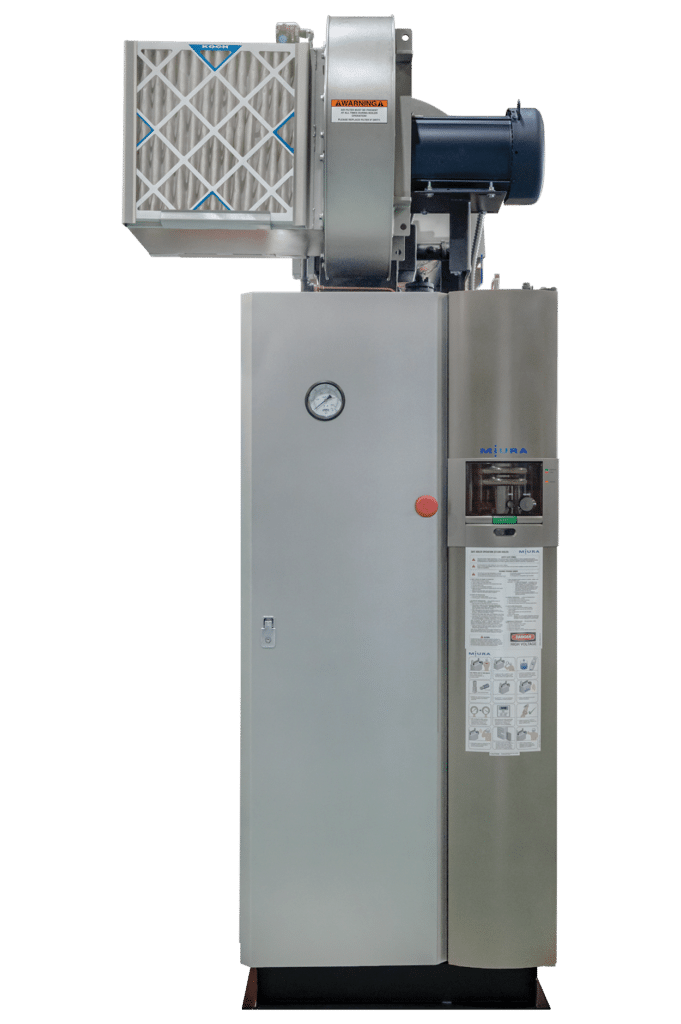

Miura LX-150 Steam Boiler
The Miura LX-150 steam boiler positions itself between mid-range and high-output configurations. Facilities that have outgrown a smaller unit but don't yet require 200 HP typically land here. It handles continuous production loads without the oversizing penalty that comes with a firetube unit selected "for future capacity."
Miura LX-200 Steam Boiler
The Miura LX-200 steam boiler is the most commonly specified model in the LX lineup across Boiler Technologies Unlimited's Florida client base. Pharmaceutical manufacturers, large hotel properties, and food processing operations gravitate toward the 200 HP output because it covers the widest range of real-world demand profiles efficiently. It runs at high utilization without the thermal stress penalties that accumulate in oversized firetube installations.
Miura LX-300 Steam Boiler
The Miura LX-300 steam boiler anchors the top of the standard LX range at 300 HP. Heavy industrial loads, high-volume food processing, and pharmaceutical facilities with large clean steam requirements all find their ceiling here. Rated as a 300 MAWP steam boiler, it supports high-pressure process applications across the most demanding environments Boiler Technologies Unlimited serves. This is the model for operations where steam availability is not negotiable.

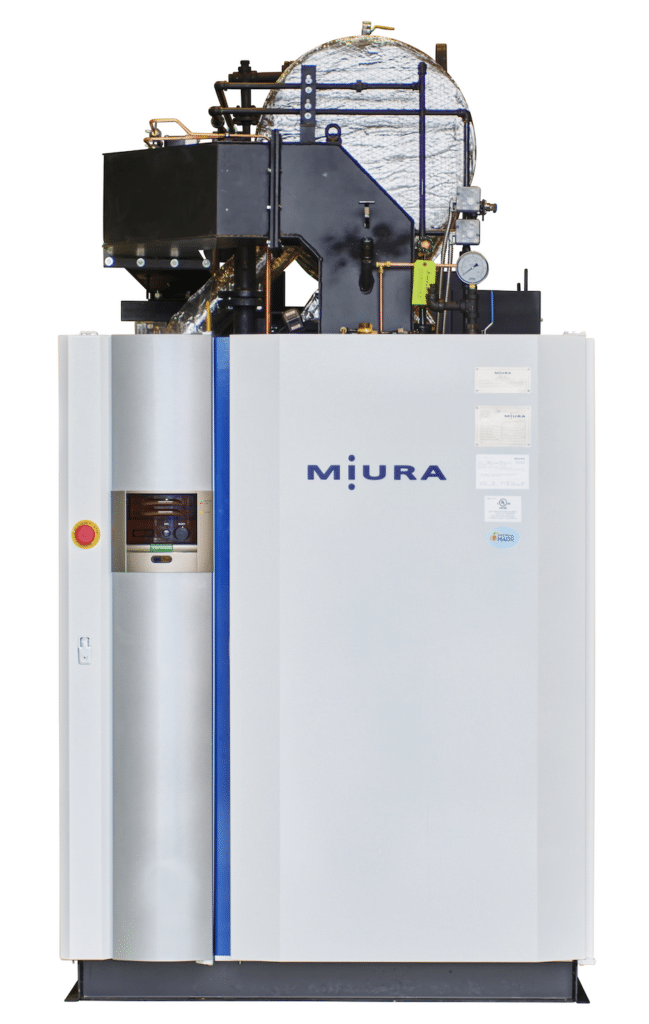

Miura LXN-300SG Ultra-Low NOx Boiler
The Miura LXN-300SG ultra-low NOx boiler is the emissions-optimized variant at the top of the LX series. It achieves 5 ppm NOx output, qualifying as an ultra-low NOx boiler 5 ppm for the most stringent air quality permit conditions in Florida and nationally. Standard LX models function as a low-NOx boiler (9 ppm), satisfying the majority of Florida regulatory requirements. The LXN-300SG is specified where environmental compliance demands more. Both represent the best available low-emissions industrial boiler performance in their respective output categories.
The Modular Advantage: Why One Large Firetube Is the Wrong Answer
This is usually where people run into problems. A single large firetube unit looks like the straightforward choice on paper. Lower initial cost per HP. One system to manage. Familiar installation.
The operational reality looks different. That single unit runs at partial load most of the time, which is precisely where firetube efficiency degrades most. It requires full standby energy to maintain readiness. When it goes down for maintenance or repair, the entire facility's steam supply goes with it.
A modular steam boiler configuration built around LX series units changes the math fundamentally. Multiple units stage automatically based on demand. Each fires only when the load requires it. Total fuel consumption drops. Redundancy is built into the architecture rather than added as an expensive afterthought. Load following happens automatically, without operator intervention.
The on-demand steam boiler model also changes the safety profile. LX series units carry a fraction of the stored energy of a large firetube system. Lower water volume means lower risk. Regulatory bodies and insurance underwriters recognize that difference.
For Florida operations with variable steam demand, such as hotels running between seasons or food processors shifting between product runs, that load-following capability compounds into meaningful boiler fuel savings across an operating year.
